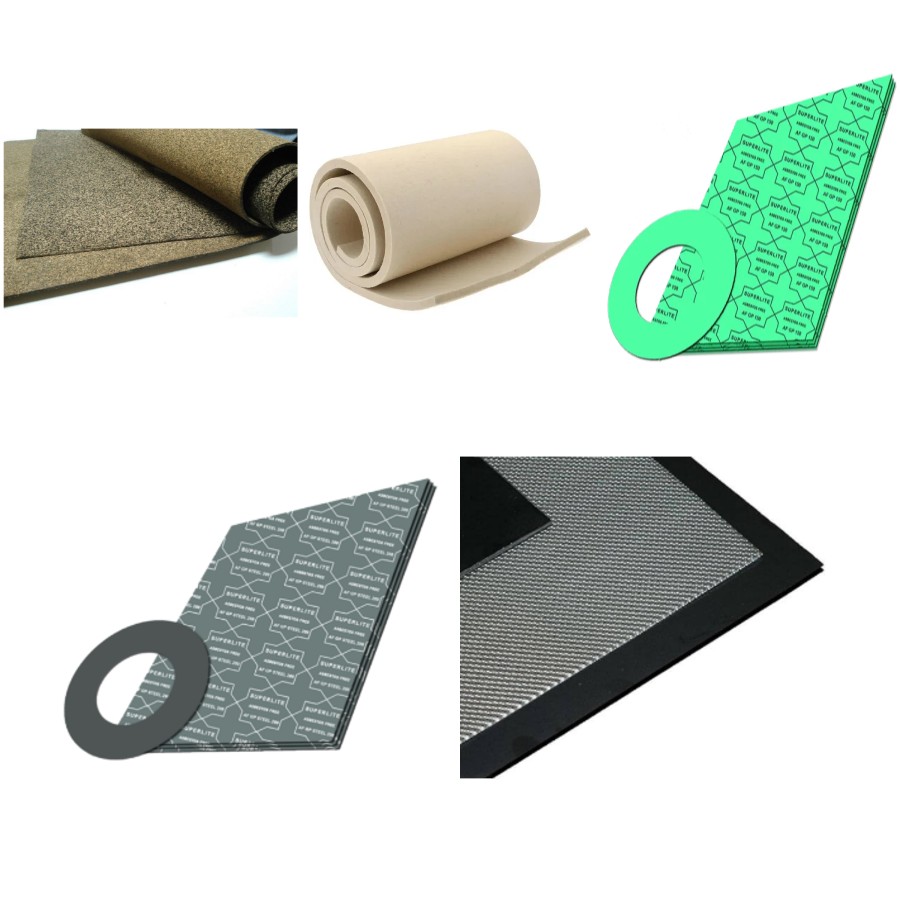

Gasket and Sheet Materials Range – Cork, Felt, Graphite and Gasket Sheets
K. Hashim LLC supplies the cork, felt, graphite and gasket sheet materials listed below for cutting gaskets and for sealing, insulation and filtration work. Each material links to its own page with the full specification.
Choose a material
| Material | Type | Key details | Best for |
|---|---|---|---|
| Rubberised cork sheet | Cork | Grades TR5, TR7 and TR8; four oil resistance classes | Gaskets for the automobile, heavy electrical, ship building and aircraft industries |
| Woolen felt sheet | Felt | White, 0.25 SG, 70% wool and 30% viscose; 1 m x 1 m, 2 mm to 25 mm thick | Filtration, absorption, cladding and sealing |
| Gasket sheet, general purpose | Gasket sheet, green | 1 mm to 3 mm thick; green, blue or other colour on request | Low-pressure steam, water, oils, fuels and inert gases under low stress |
| Asbestos Free GP-200 Steel | Gasket sheet with metal insert, dark grey | ASTM; G/GR finish or other colour on request | Medium pressure steam, water, oils, fuels and inert gases under low stress |
| Graphite tanged sheet | Graphite sheet with metal insert | Up to 140 bar; 1.0, 1.5, 2.0 and 3.0 mm; -200°C to +500°C in oxidising conditions | Gaskets for high-pressure and high-temperature joints |
Key features
- Cork, felt, general purpose gasket sheet, GP-200 Steel gasket sheet and graphite tanged sheet in one range
- Asbestos-free gasket sheet options, including GP-200 Steel and OIL-250
- Gasket sheet from 1 mm to 3 mm thick, in green, blue or other colours on request
- Graphite tanged sheet for pressures up to 140 bar
- Die-cut or hand-cut gaskets from sheet
Typical applications
- Gaskets for pipelines, flanges, pumps and valves
- Oil and gas, chemical, power, HVAC, water treatment and manufacturing industries
- Automobile, heavy electrical, ship building and aircraft industries
- Filtration, absorption, cladding and sealing with felt
Specification
| Specification | Details |
|---|---|
| Materials listed | Rubberised cork, woolen felt, general purpose gasket sheet, GP-200 Steel gasket sheet, graphite tanged sheet |
| Thickness | Gasket sheet 1 mm to 3 mm; graphite tanged sheet 1.0 to 3.0 mm; felt 2 mm to 25 mm; cork please enquire |
| Sheet sizes | Please enquire (felt 1 m x 1 m) |
| Colours | Gasket sheet green, blue or other colour on request |
| Standard | ASTM for general purpose and GP-200 Steel gasket sheet |
Ordering: Tell us the material, thickness, sheet size and quantity you need and we will send a quotation. Also available: Asbestos Free OIL-250 gasket sheet to BS 7531 Grade Y. Free delivery on orders of AED 3,000 and above (delivery information).
